    Trough Beam G30 G18 Plastic 300mA Photo Cell electric Switch AC 220V

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : G30 G18
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Trough Beam G30 G18 Plastic 300mA Photo Cell electric Switch AC 220V

    Trough Beam G30 G18 Plastic 300mA Photo Cell electric Switch AC 220V

    Main features:

    1 . high precision of repeated location
    2 . Diversified exterior structures
    3 . Many output forms
    4 . High on-off frequency

    Application illustration or photoelectric switch


    1 . Detected object: Transparent or opaque body

    2 . Decetion of thick carton

    3 . Product accounting

    4 . Guard again restricted zone being invaded

    5. Check out the broken or faulted tobacco rolling paper


    Technical Parameters:


    Model NO.Working voltageOutputDetection way
    FormState
    G30 -3A 70NADC10-30VNPNNODiffuse type
    G30 -3A 70NBDC10-30VNPNNCDiffuse type
    G30 -3A 70NCDC10-30VNPNNO+NCDiffuse type
    G30 -3A 70PADC10-30VPNPNODiffuse type
    G30 -3A 70PBDC10-30VPNPNODiffuse type
    G30 -3A 70PCDC10-30VPNPNO+NCDiffuse type
    G30 -2A 70LAAC90-250VSCR Control lable siliconNODiffuse type
    G30 -2A 70LBAC90-250VSCR Control lable siliconNCDiffuse type
    G30-3B3NADC10-30VNPNNORetroreflective
    G30-3B3NBDC10-30VNPNNCRetroreflective
    G30-3B3NCDC10-30VNPNNO+NCRetroreflective
    G30-3B3PADC10-30VPNPNORetroreflective
    G30-3B3PBDC10-30VPNPNCRetroreflective
    G30-3B3PCDC10-30VPNPNO+NCRetroreflective
    G30-2B3LAAC90-250VSCR Control lable siliconNORetroreflective
    G30-2B 3LBAC90-250VSCR Control lable siliconNCRetroreflective
    G30 -3C 102NADC10-30VNPNNOThrough beam
    G30 -3C 101NBDC10-30VNPNNCThrough beam
    G30 -3C 101NCDC10-30VNPNNO+NCThrough beam
    G30 -3C 101PADC10-30VPNPNOThrough beam
    G30 -3C 101PBDC10-30VPNPNCThrough beam
    G30 -3C 101PCDC10-30VPNPNO+NCThrough beam
    G30 -2C 101LAAC90-250VSCR Control lable siliconNOThrough beam

    Model composeition and definition of photoelectric switch


    G 18 3 A 10 N A □
    —— —— —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    NOCompositionCode and definition
    1Basic form

    G: Plastic infrared ray photoelectric switch

    E: Metal infrared ray photoelectric switch

    2Outward appearance code18, 50, 76...
    3Working voltage

    2: 30-250VAC

    3: 10-30VDC

    4: 12-240VDC/24-240VAC

    5: Special voltage

    4Detection way

    A: Diffused reflection type(scattered reflection type)

    B: Feedback reflection type mirror(mirror reflection type)

    C: Penetration type(correlation type)

    D: Marking detection type

    G: Optical fiber type

    5Detection distance

    05:5cm

    10: 10cm

    30: 30cm

    6Output form

    N:NPN transistor output

    P:PNP transistor output

    J: Relay contact output

    L: AC two-wire output

    S: With two outputs: NPN and PNP

    7Output state

    A: Normally open(light entering NO)

    B: Normally close(light sheltering NC)

    C: Normally open-normally close

    8Subsidiary

    T1: Front delay

    T2: Rear delay

    Y: Oil proof

    T: With aviation connector

    I: Special requirement


    FAQ

    1.The applications of sensor ?

    A: Punch, Machine tool, Automatic controller, Automatic water device, Semi automatic industrial control equipment


    2.How to confirm the sensors model ?

    A: The buyer need to provide the below information : Voltage NPN/PNP NO/NC/NO+NC Detected object Detected distance


    3.How to adjust the distance of the photoelectric switch ?

    A: Clockwise make the detected distance increase and anti-clockwise decrease .


    4. Difference between photoelectric switch and capacitance type ?

    A: (1) They can both detect liquids , but Cm can only be detected through the glass tube or plastic tube , photoelectric switch can not .

    (2) The detection distance of the photoelectric switch is larger than the capacitance type


    Dimension

    G30►


    G18►

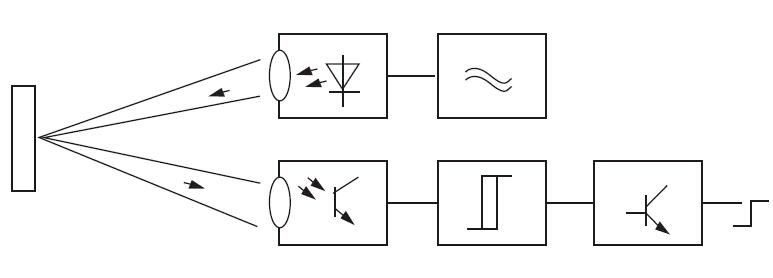

    Photoelectric switch Principle of photoeletric switch


    The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.
