    Open Closed Variable 10A Dual Room Temperature Thermostat With Red Temperature Dial

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : ZR011
    Certification : CE,ROSH
    Price : USD 3.83 PCS
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Open Closed Variable 10A Dual Room Temperature Thermostat With Red Temperature Dial

    Open Closed Variable 10A Dual Thermostat With Red Temperature Dial


    ● No and Nc in one casing
    ● Separate adjustable temperatures
    ● High switching capacity
    ● Terminals easily accessible
    ● Clip fixing


    The ZR011 houses two separate themostats,allowing the independent control of heating and cooling or other equipment


    Thermostat NC(normally closed)

    Thermostat opens at temperature rise-for regulating heaters or for swithching signal devices.

    Comes with red temperature dial.


    Thermostat NO(Normally open)

    Thermostat closes at temperature rise- for regulating filter fans and heat exchangers or for swithing signal devices.Comes with blue temperature dial.

    TECHNICAL PARAMETER

    Switch temperature difference

    7K (± 4K tolerance)

    Sensor element

    thermostatic bimetal

    Service life

    > 100 000 cycles

    Max. switching capacity

    250VAC, 10 (2) A


    120VAC, 15 (2) A


    DC 30W

    Connection

    4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm²,

    stranded wire (with wire end ferrule) 1.5mm²

    Mounting

    clip for 35mm DIN rail, EN60715

    Casing

    plastic according to UL94 V-0. light grey

    Weight

    approx. 90g

    Fitting position

    variable

    Operating/Storage temperature

    -45 to +80°C (-49 to +176°F)

    Operating / Storage humidity

    max. 90 % RH (non-condensing)

    Approvals

    UL File No. E164102

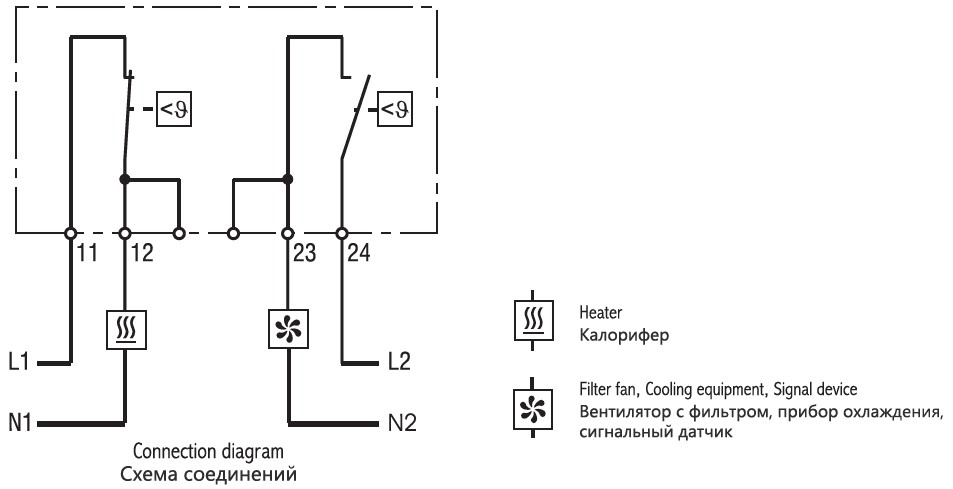

    WIRING dimension
