OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor

    Buy cheap OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor from wholesalers

    Buy cheap OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor from wholesalers
    • Buy cheap OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor from wholesalers
    • Buy cheap OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor from wholesalers
    • Buy cheap OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor from wholesalers

    OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : WCT 100A 2P 2NO
    Certification : CE,ROSH
    Price : USD 22.92 TO USD 25.93
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor

    New 220V Automatic 2NO 2P Electrical Goods 100A Types Of Contactor

    Breif

    AC contactor belongs to modular controlling electrical equipment,which has novelty structure,compact size ,it is DIN-RAIL for installation,size of modular,modeling artistic.use of safety,direct acting inversion.And,it can install in the distribution boards along with breakers.

    Application

    WCT series household AC contactors are suitable for controlling household appliances & similar usages low micro-load, also controlling household motors loading, whose controlling power shall be reduced, The products are used for family , hotel , apartment etc. places, And, it can be realized automatic function.


    Technical data

    WCT Manual contactors-50Hz
    Raring(In)Control voltage(V AC)(50Hz)ConsumptionMax.

    power
    AC7aHoldingInrush
    4P100 A220...24013 VA106 VA4.2 W

    Power circuit
    Voltage Rating(Ue) 1P, 2P250VAC
    3P, 4P400VAC
    Endurance(O-C)
    Electrical100000 cycles
    Maximum number of switching operation a day100
    Additional characteristics
    Insulation voltage(Ui)500VAC
    Pollution degree2
    Rated impulse withstand voltage(Uimp)2.5kV(4 kV for 12/24/48V AC)
    Degree of protection

    (IEC 60529)
    Device onlyIP20
    Device in modular enclosureIP40
    Tropicalization (IEC 60068-1)Treatment 2(relative humidity 95% at 55℃)

    Attention

    1. Confirm whether the product voltage, current, frequency and use category meet the requirements before use;

    2. Connect the control circuit first for no-load operation test and then connect the load in case of no abnormality;

    3. Regularly tighten the terminals and remove the deposited dust;

    4. Don't make the foreign matters fall into the product

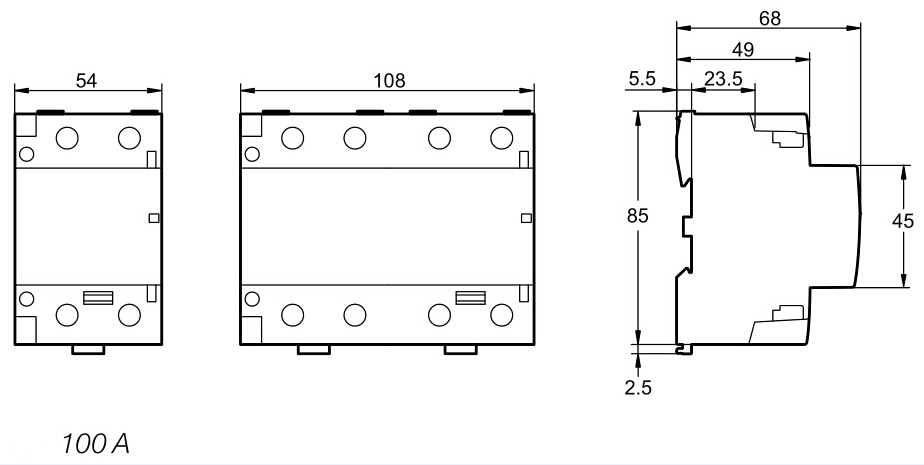

    Dimension

    Quality OEM 4NO On Consumption 4 Phase Coil 100A Household WCT AC Contactor for sale
