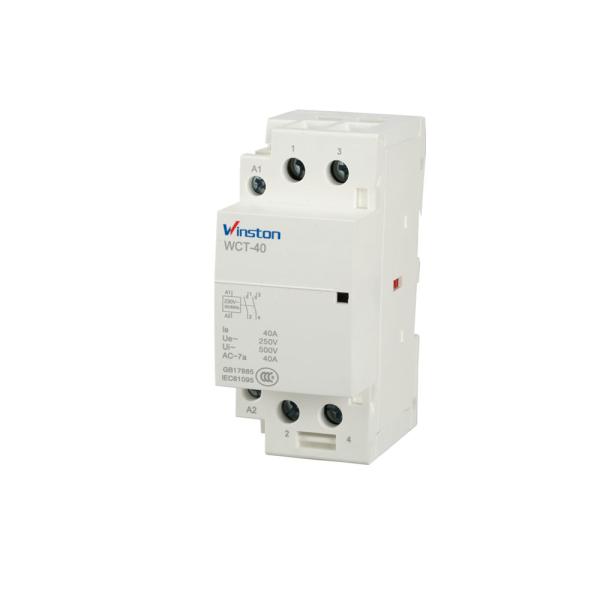

    FWiring Diagram 240V Coil Electrical 2NO Mini Contactor for Household

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : WCT 40A 2P 2NO
    Certification : CE,ROSH
    Price : USD 5.68 TO USD 8.68
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    FWiring Diagram 240V Coil Electrical 2NO Mini Contactor for Household

    From China Wiring Diagram 240V Coil Electrical 2NO Mini Contactor

    Description

    WCT series household AC contactors are suitable for controlling household appliances & similar usages low micro-load,also controlling household motors loading, whose controlling power shall be reduced, The products are used for family ,hotel ,apartment etc. places, And, it can be realized automatic function.

    Conditions of Working & Installations


    Temperature: 5℃~+40℃,AVG not over within 24h+35℃
    Altitude: not over 2000m.
    Atmospheric conditions: RH+40℃ not over 50% under,RH can be for 90% under +20℃, In dewing,it should be taken special precautious.
    Class of pollution: 2
    Installation type: II
    Mode of installations: TH35-7.5 types steel DIN-RAIL
    IP Grade: IP20


    Attention

    1. Confirm whether the product voltage, current, frequency and use category meet the requirements before use;

    2. Connect the control circuit first for no-load operation test and then connect the load in case of no abnormality;

    3. Regularly tighten the terminals and remove the deposited dust;

    4. Don't make the foreign matters fall into the product


    Consumption

    WCT contactors-50Hz

    Type

    Raring(In)

    Control voltage

    (VAC)(50Hz)

    Consumption

    Max.

    power

    AC7a

    Holding

    Inrush

    4P

    40A

    220...240

    6.5 VA

    53 VA

    2.1 W

    Dimension
