    Modular Homes 1NO Telecommunication 25A single Phase AC Contactor

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : WCT 25A 1P 1NO
    Certification : CE,ROSH
    Price : USD2.93 to USD5.93
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Modular Homes 1NO Telecommunication 25A single Phase AC Contactor

    Modular Homes 1NO Telecommunication 25A single Phase AC Contactor


    Product description

    WCT series household AC contactors are suitable for controlling household appliances & similar usages low micro-load, also controlling household motors loading, whose controlling power shall be reduced, The products are used for family , hotel , apartment etc. places, And, it can be realized automatic function.


    Technical data

    Power circuit
    Voltage Rating(Ue) 1P, 2P
    250VAC
    3P, 4P
    400VAC
    Endurance(O-C)
    Electrical
    100000 cycles
    Maximum number of switching operation a day
    100
    Additional characteristics
    Insulation voltage(Ui)
    500VAC
    Pollution degree
    2
    Rated impulse withstand voltage(Uimp)
    2.5kV(4 kV for 12/24/48V AC)
    Degree of protection

    (IEC 60529)
    Device only
    IP20
    Device in modular enclosure
    IP40
    Tropicalization (IEC 60068-1)
    Treatment 2(relative humidity 95% at 55℃)

    WCT contactors-50Hz
    Raring(In)Control voltage(V AC)(50Hz)ConsumptionMax.

    power
    AC7aHoldingInrush
    1P25 A2203.8 VA15 VA1.3 W
    230…2403.8 VA9.2 VA1.2 W

    Attention

    1. Confirm whether the product voltage, current, frequency and use category meet the requirements before use;

    2. Connect the control circuit first for no-load operation test and then connect the load in case of no abnormality;

    3. Regularly tighten the terminals and remove the deposited dust;

    4. Don't make the foreign matters fall into the product

    Dimension

    Detail

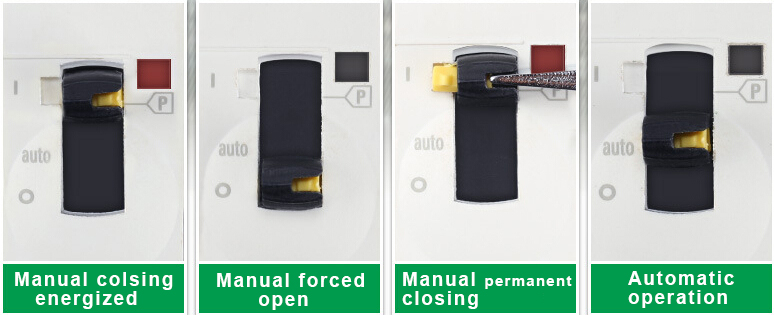

    Operation
