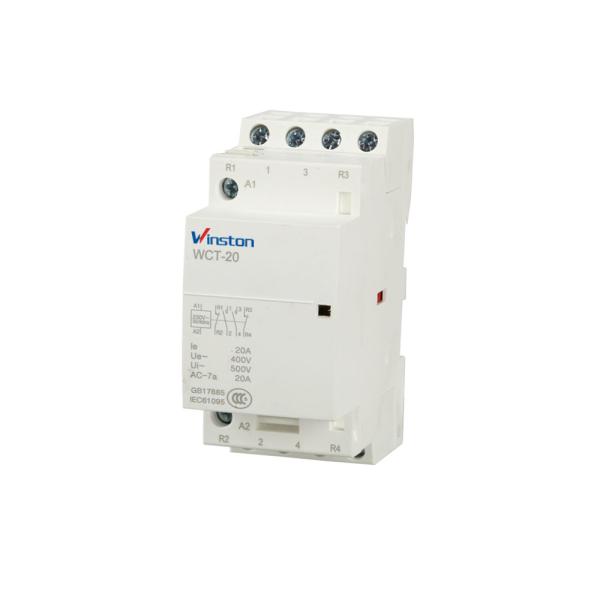

    Wiring Diagram 20A Electrical 4P 220v Contactor installation class II or III

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : WCT 20A 4P 2NONC
    Certification : CE,ROSH
    Price : USD5.59 to USD9.59
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Wiring Diagram 20A Electrical 4P 220v Contactor installation class II or III

    Air Conditioner Parts Wiring Diagram 20A Electrical 4P 220v Contactor


    Normal operation and mounting requirement

    • Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
    • Altitude above sea level less than 2000 m.
    • Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
    • Installation class II or III.
    • Pollution class 2.

    Technical data

    Rating(In) AC7a

    Control voltage

    (VAC)(50Hz)

    ContactWidth modul
    4P 20A220...2402NO+2NC4
    Power circuit
    Voltage Rating(Ue) 3P, 4P
    400VAC
    Endurance(O-C)
    Electrical
    100000 cycles
    Maximum number of switching operation a day
    100
    Additional characteristics
    Insulation voltage(Ui)
    500VAC
    Pollution degree
    2
    Rated impulse withstand voltage(Uimp)
    2.5kV(4 kV for 12/24/48V AC)
    Degree of protection

    (IEC 60529)
    Device only
    IP20
    Device in modular enclosure
    IP40
    Tropicalization (IEC 60068-1)
    Treatment 2(relative humidity 95% at 55℃)

    Consumption

    WCT contactors-50Hz
    Raring(In)
    Control voltage(V AC)(50Hz)
    Consumption
    Max.
    power
    AC7a
    AC7b
    Holding
    Inrush
    4P
    20A
    6.4A
    220....240
    4.6VA
    34VA
    1.6W

    Feedback

    We strive to produce superior products, and strive to achieve 100% customer satisfaction!

    If you have any questions and are not satisfied with the goods after purchase, please contact us before you make the evaluation products, we will get back to you, thank you !

    Dimension
