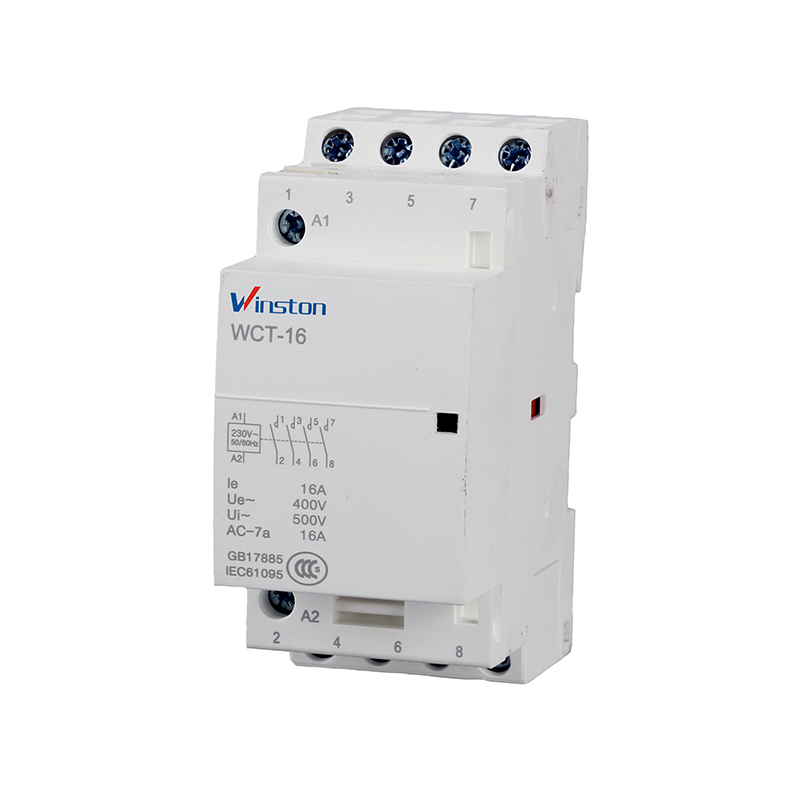

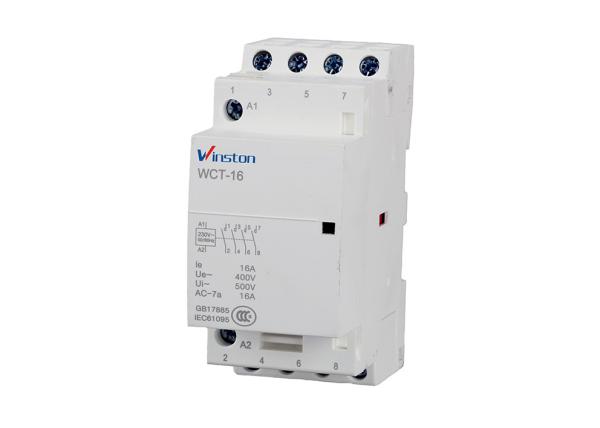

    220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : WCT 16A 4P 4NO
    Certification : CE,ROSH
    Price : USD5.1 to USD8.41
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor

    220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor

    Advantage.

    - Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;


    - The fast and flexible production form aim at the customer require;


    - The deliveries exactly in accordance with customer orders


    - The fast transportation.


    Technical data


    Rating(In) AC7a

    Control voltage

    (VAC)(50Hz)

    ContactWidth modul
    4P 16A244NO4
    220...2404NO4
    220...2402NO+2NC4
    Power circuit
    Voltage Rating(Ue) 3P, 4P
    400VAC
    Endurance(O-C)
    Electrical
    100000 cycles
    Maximum number of switching operation a day
    100
    Additional characteristics
    Insulation voltage(Ui)
    500VAC
    Pollution degree
    2
    Rated impulse withstand voltage(Uimp)
    2.5kV(4 kV for 12/24/48V AC)
    Degree of protection

    (IEC 60529)
    Device only
    IP20
    Device in modular enclosure
    IP40
    Tropicalization (IEC 60068-1)
    Treatment 2(relative humidity 95% at 55℃)

    Normal operation and mounting requirement

    • Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
    • Altitude above sea level less than 2000 m.
    • Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
    • Installation class II or III.
    • Pollution class 2.
    • Installation method DIN Rail mounting type.

    Consumption

    WCT contactors-50Hz
    Raring(In)
    Control voltage(V AC)(50Hz)
    Consumption
    Max.
    power
    AC7a
    AC7b
    Holding
    Inrush
    4P
    16A
    5A
    24
    4.6VA

    34VA

    1.6W
    220...240
    4.6VA
    34VA
    1.6W
    220....240
    4.6VA
    34VA
    1.6W

    Dimension

    220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor
