    Household Electric AC Contactor 24v WCT NC 16A 2 Pole Mini IP40

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : WCT 16A 2P 2NC
    Certification : CE,ROSH
    Price : USD3 to USD8.5
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Household Electric AC Contactor 24v WCT NC 16A 2 Pole Mini IP40

    Chinese Electric Magnetic 24v WCT NC 16A 2 Pole Mini Contactor

    Product description

    WCT contactors can be used to remote control applications in alternative networks:


    * mechanical ventilation systems, etc

    * load-shedding of non-priority circuits


    Technical data

    Rating(In) AC7a

    Control voltage

    (VAC)(50Hz)

    ContactWidth modul
    2P 16A122NO2
    242NO2
    482NO2
    2202NO2
    230...2402NO2
    Power circuit
    Voltage Rating(Ue) 1P, 2P
    250VAC
    3P, 4P
    400VAC
    Endurance(O-C)
    Electrical
    100000 cycles
    Maximum number of switching operation a day
    100
    Additional characteristics
    Insulation voltage(Ui)
    500VAC
    Pollution degree
    2
    Rated impulse withstand voltage(Uimp)
    2.5kV(4 kV for 12/24/48V AC)
    Degree of protection

    (IEC 60529)
    Device only
    IP20
    Device in modular enclosure
    IP40
    Tropicalization (IEC 60068-1)
    Treatment 2(relative humidity 95% at 55℃)

    Advantage

    • Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
    • The fast and flexible production form aim at the customer require;
    • The deliveries exactly in accordance with customer orders
    • The fast transportation.

    Consumption

    WCT contactors-50Hz
    Raring(In)
    Control voltage(V AC)(50Hz)
    Consumption
    Max.
    power
    AC7a
    AC7b
    Holding
    Inrush
    2P
    16A
    5A
    12
    3.8VA
    15VA
    1.3W
    24
    3.8VA

    15VA

    1.3W
    48
    3.8VA
    15VA
    1.3W
    220
    3.8VA
    15VA
    1.3W
    230....240
    2.7VA
    9.2VA
    1.3W

    Dimension

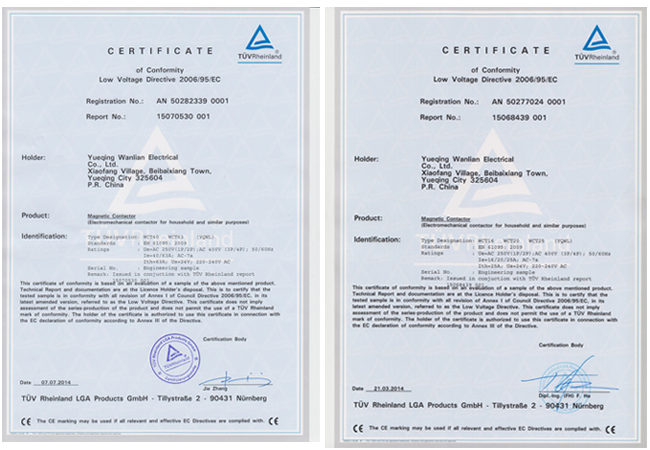

    Certification
