    SM12 IP67 8mA Effect NO NC Hall Proximity Sensor Original New

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : SM12
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    SM12 IP67 8mA Effect NO NC Hall Proximity Sensor Original New

    SM12 IP67 8mA Effect NO NC Hall Proximity Sensor Original New

    Technique parameter

    Order code
    Working voltageOutput formOutput state
    Detection distance : 10mm,
    SM12-31010NADC4.5-24VNPNNO
    SM12-31010PADC4.5-24VPNPN0
    SM12-31010NBDC4.5-24VNPNNC
    SM12-31010PBDC4.5-24VPNPNC

    Features:


    1 . Wide mains voltage range
    2 . High frequency
    3 . Long service life, compact volume, and convenient installation

    4 . Diversified exterior structures
    5 . With short-circuit protection and inverted connecting protection


    Model explanation of proximity switch

    LM 18 30 05 N A □ / L
    —— —— - —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Switch categoryOutput form


    Lm: Inductance type
    Cm: Capacitance type
    Sm: Hall type
    Am: Safety Explosion-proof type
    Xm: Mimic Linear type
    Hm: Reed type
    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output
    P: Three-wire Dc PnP Output
    L: Two-wire Dc Output
    : Ac Two-wire Output
    J: Relay Contact Output
    Np: NpN+PnP Double Output

    Outward appearance codeOutput state


    □: Cylinder type
    F□: Angular Colum Type And Plane Installation Type


    A: (no) normally Open (no)
    B: (nc) Normally Close (nc)
    C: (no-nc) normally Open-Normally Close (no+nc)
    Mu: Mimic Voltage
    Mi: Mimic Current
    Mui: Voltage+Current

    Working voltageSubsidiart functions


    30: 6-36VDC 310:5-24VDC 320:12-60VDC
    330: 10-30VDC 340:10-55VDC 350:10-60VDC
    360: 5-36VDC 20:90-250VAC 210:24-250VAC
    220: 380VAC40:12-240VDC/24-240AC
    50: Special voltage

    T: with aviation connector
    Y: water proof,oil proof
    I: special requirement
    H: high temp resistance
    R: ring type

    Detection distanceLong-distance


    01: 1mm 05: 5mm 10: 10mm ......

    L: Long-distance


    Dimension

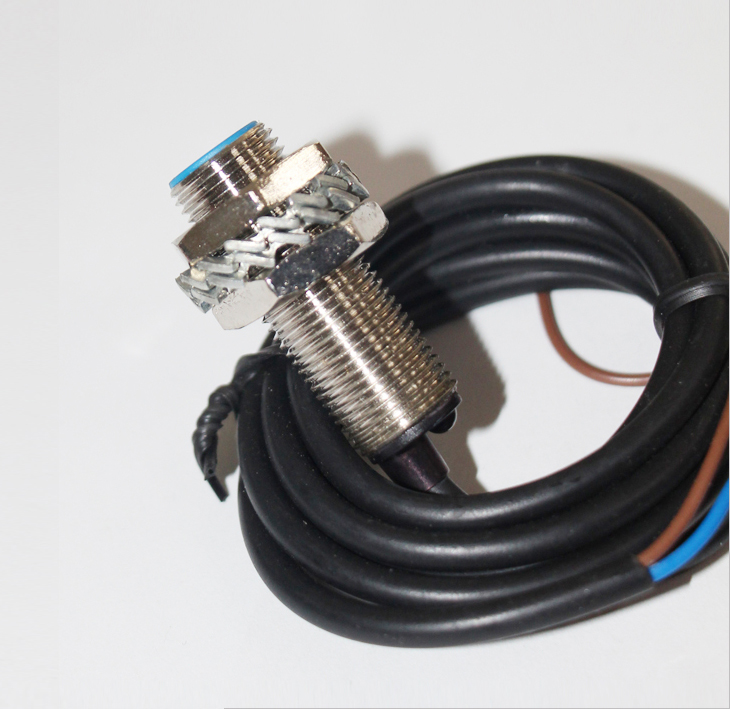

    Product Picture
