    DC Flush Non-flush Capacitive Proximity Sensor Threaded Housing CM12

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : CM24
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    DC Flush Non-flush Capacitive Proximity Sensor Threaded Housing CM12

    Flush Non-flush Capacitive Proximity Sensor Threaded Housing CM12

    Technique parameter

    DETECTION DISTANCE 0-8mm

    F
    l
    u
    s
    h

    DC
    6-
    36
    VDC


    AC
    90-
    250
    VAC
    NPNNOCM24-3008NA
    NCCM24-3008NB
    NO+NCCM24-3008NC
    PNPNOCM24-3008PA
    NCCM24-3008PB
    NO+NCCM24-3008PC
    SCR
    Control-
    lable
    silicon
    NOCM24-2008A
    NCCM24-2008B
    DETECTION DISTANCE 0-12mm

    F
    l
    u
    s
    h

    DC
    6-
    36
    VDC


    AC
    90-
    250
    VAC
    NPNNOCM24-3012NA
    NCCM24-3012NB
    NO+NCCM24-3012NC
    PNPNOCM24-3012PA
    NCCM24-3012PB
    NO+NCCM24-3012PC
    SCR
    Control-
    lable
    silicon
    NOCM24-2012A
    NCCM24-2012B
    Detectable object'conductor and dielectric body
    Consumption currentDC< 15mAAC< 10mA
    ControloutputDC: 200mA, AC: 300mA
    Output voltagc dropDC/ACDC< 3VAC< 7V
    DC/ AC Response frequencyDC: 50Hz, AC: 10Hz
    Working environment temperature-25~70º C
    Protection structureIECstandard lp54
    Altemative model at home and abroadLJC24A3-

    Features:


    1) Multiplicity appearance
    2) Compact volume
    3) High repeat orientation precision
    4) Many output form
    5) Strong protection distribution
    6) High on-off frequency commonly 600Hz
    7) Wide voltage range


    Working priciple capacitance proximity switch

    The induction surface of capacitance sensor is composed of two coaxial mental electrodes, which from a capacitor and connected on RC oscillation circuit, just like an open capacitor electrode.

    Application illustration of proximity switch

    1 . Liquid level measurement-plastic or glass container
    2 . Material level measurement

    3 . Checking for broken board

    4 . Count the bottles

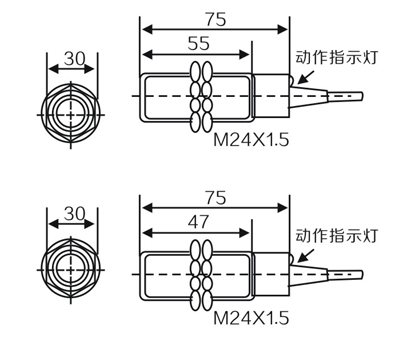

    Dimension

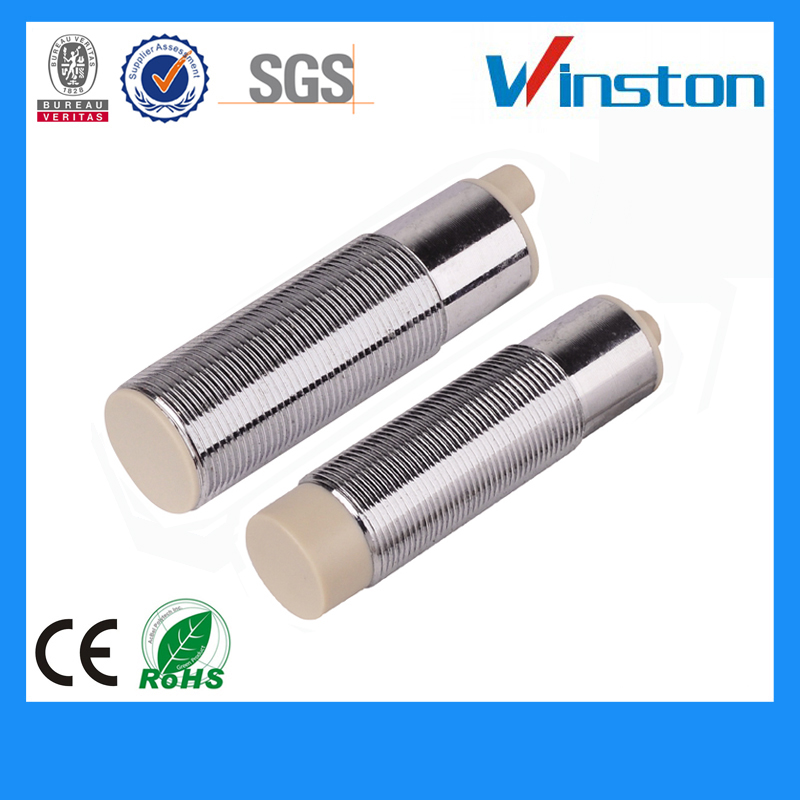

    Product Picture
